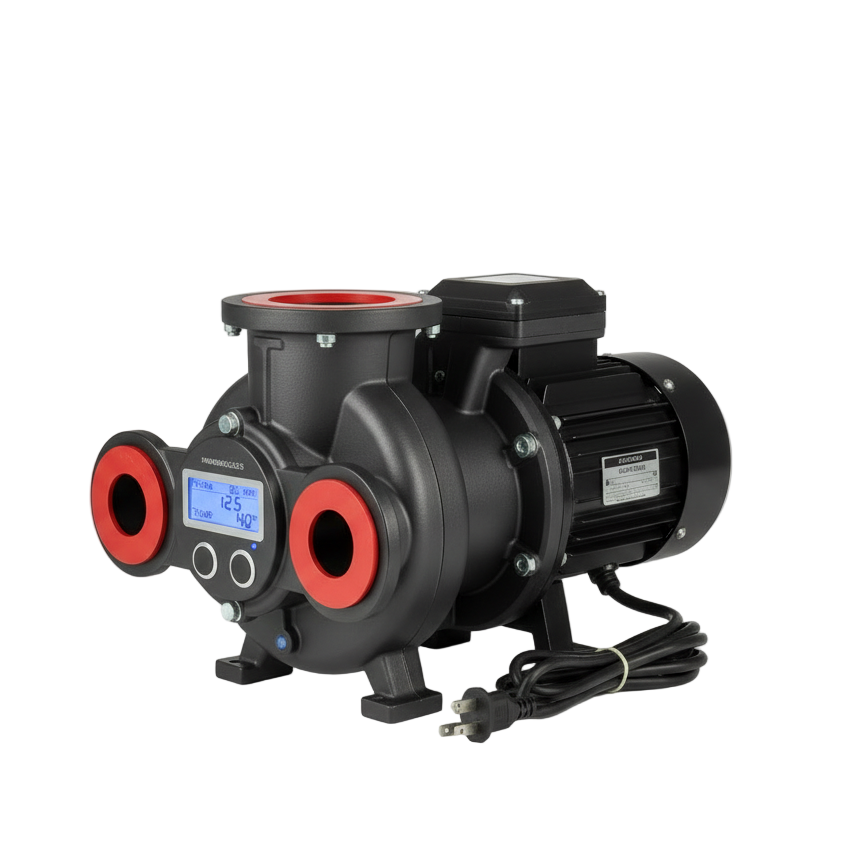

AI357Commercial Circulator
by Pump Sphere
£1,599.00
| Feature | Description |
| Model | AI357 |
| Flow Rate | 1 – 10 m³/h |
| Head Range | 2 – 10 m |
| Power Range | 0.1 – 1 kW |
| Material | Pump body: Cast iron; Impeller: Plastic or Bronze; Shaft: Stainless steel |
| Applications | Small commercial HVAC systems, light hot water recirculation, low-pressure heating circuits |
| Pump Type | Centrifugal, inline |
| Seal Type | Mechanical seal (carbon/ceramic) |
| Max Operating Pressure | 6 – 10 bar |
| Liquid Temp Range | 0°C to 90°C |
| Certifications | CE, ISO 9001, RoHS |
| Connection Options | Threaded (BSP/NPT) or small flanged connections |
| Control System | Manual speed control, basic on/off switch, optional variable speed |
| Installation Type | Horizontal or vertical inline, compact footprint |
