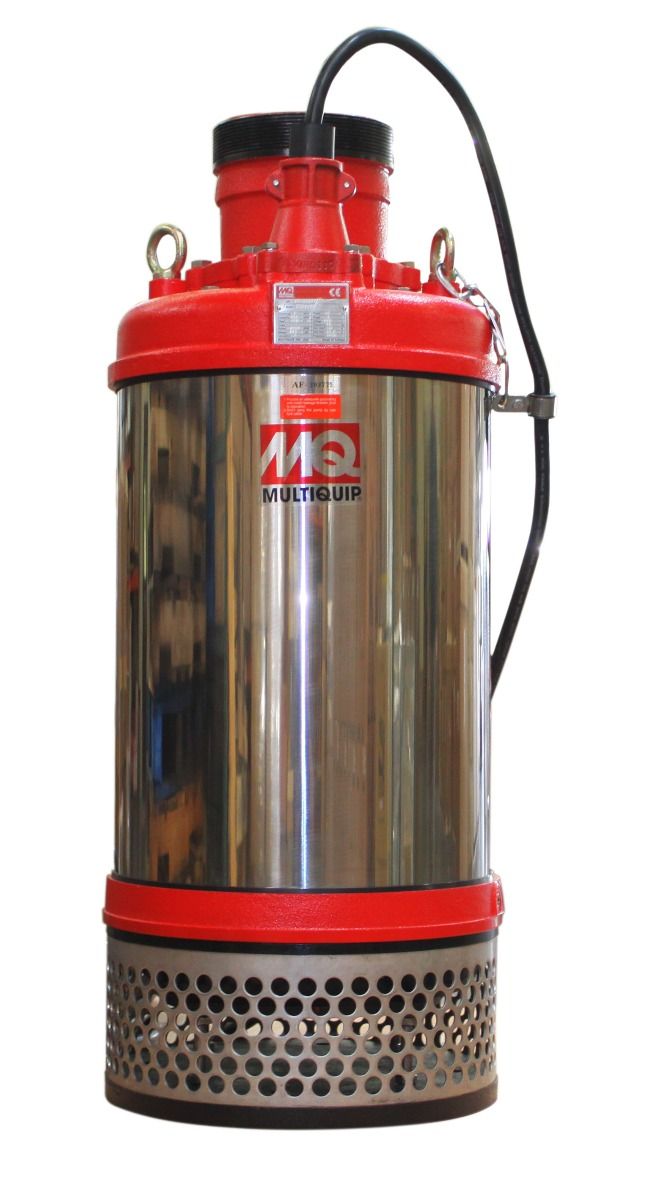

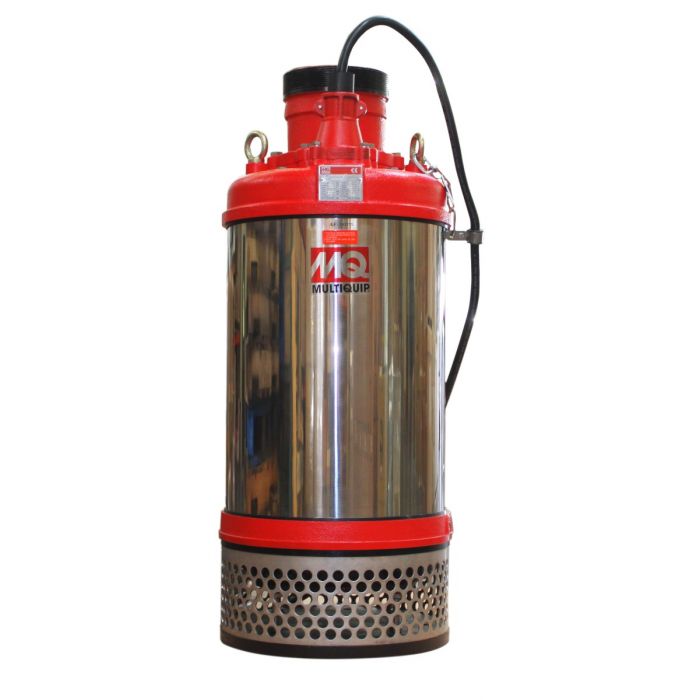

Multiquip Submersible Pump - 674 GPM, 15 HP, 3-Phase, 230 volt
by Pump Sphere
£4,900.00
Multiquip Submersible Pump - 674 GPM, 15 HP, 3-Phase, 230 volt
- 15.0 horsepower, 230 volt, three-phase electric motor
- Water discharge up to 674 GPM
- Maximum head of 105 feet
- Passes up to 0.6 inch spherical solids
- Required accessory: Control Box CB1274
Powerful, versatile, and low maintenance. Incorporates a rugged stainless steel housing, oil-filled, double mechanical pump seals, and molded 33 foot power cable with strain relief. Pump requires a Control Box to provide safe ON/OFF functioning, overload safety shut downs that are thermal & voltage related, and to assist in powering float switch operation
PRODUCT DETAILS
| Manufacturer | Multiquip |
|---|---|
| SKU | ST61230 |
| Model Number | ST61230 |
| For Potable Water Use | No |
ENGINE/MOTOR DETAILS
| Engine/Motor Brand | Multiquip |
|---|---|
| Fuel Type | Electric |
| Starting System | NA |
| Horsepower | 15.0 HP |
| Phase | 3-Phase |
| Pump Voltage | 230 Volt (3-Phase) |
| Start Current | 258 Amps |
| Rated Current | 43.0 Amps |
| Cable Length | 33 Feet |
| Cable Strain Relief | Yes |
| Pump RPM | 3600 |
| Thermal Overload Protect | Yes, With Control Box, Add @ Checkout |
| Motor Casing | Cast Iron/Steel |
PUMP DETAILS
| Pump Type | Dewatering Pump |
|---|---|
| Pump Style | Electric Submersible Pump |
| Pump Application | Clean Water, Debris Water |
| Suction Cover | Stainless Steel |
| Dewater Depth | To 1/2 Inch |
| Outlet Diameter | 6" |
| Max Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates) | 674.0 |
| Max Total Head (Static) | 105 Feet |
| Maximum Pressure (PSI) | 45 |
| Solids Handling | Yes |
| Max Solids Handling (Inches) | 0.6" |
| Self Priming Pump | Yes, Submergence |
| Quick Clean Out | Yes (Impeller) |
| Housing Material | Stainless Steel |
| Impeller Type | Dynamically Bal. |
| Impeller Material | Chrome Steel |
| Seal Material (Mechanical Or Other) | Oil-Filled, Double |
| Shaft Seal | Yes, Dual |
| Temperature Range | To 140 F |
| pH Range | 4-10 |
| Port Type(s) | Discharge: Male (NPT), NPT |
| Submergence Minimum | 6" Above Pump Height (Continuously, To Avoid Vortex) |
| Submergence Maximum | 60’ Depth From Surface Of Water (Or As Stated By Manufacturer) |
