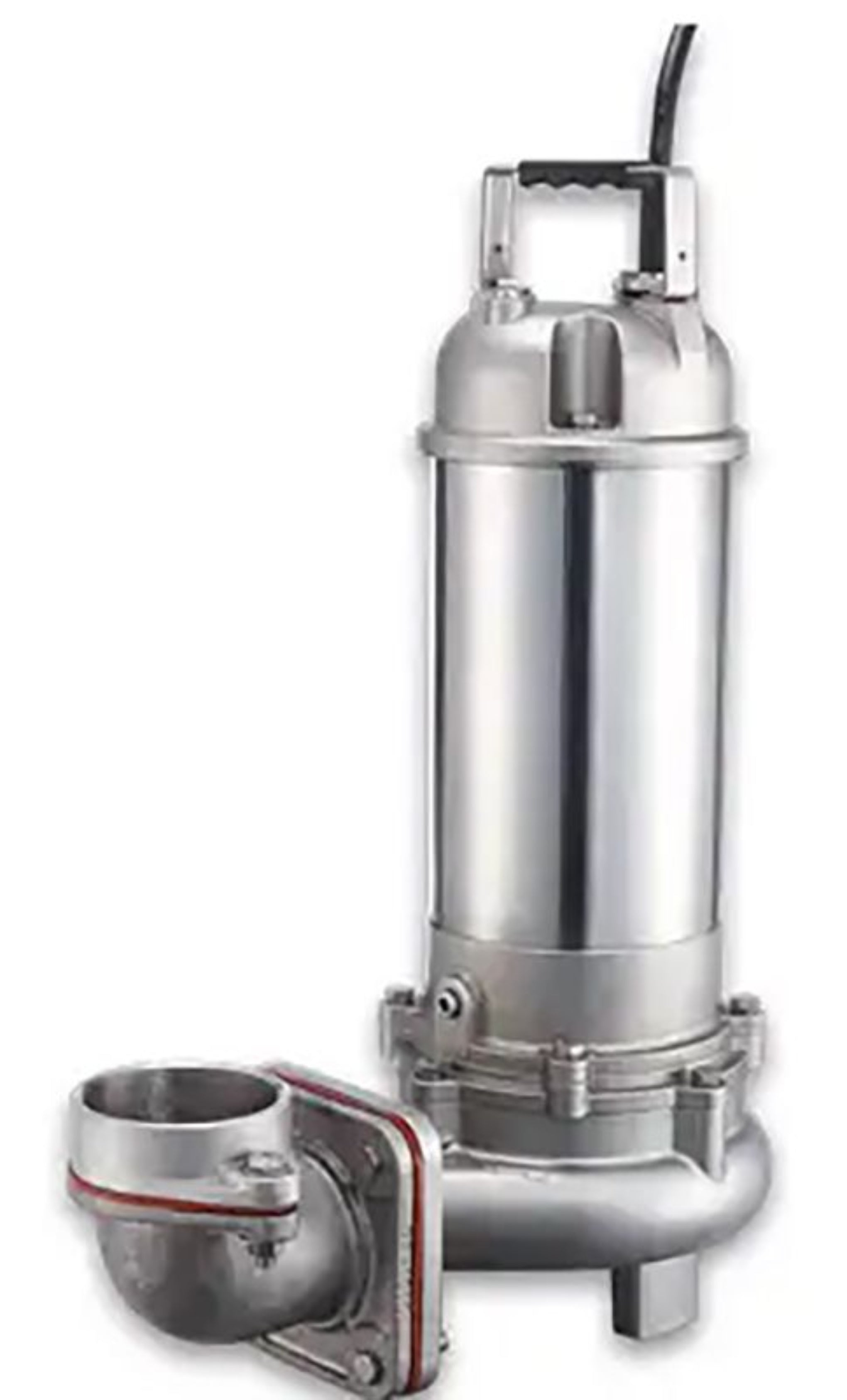

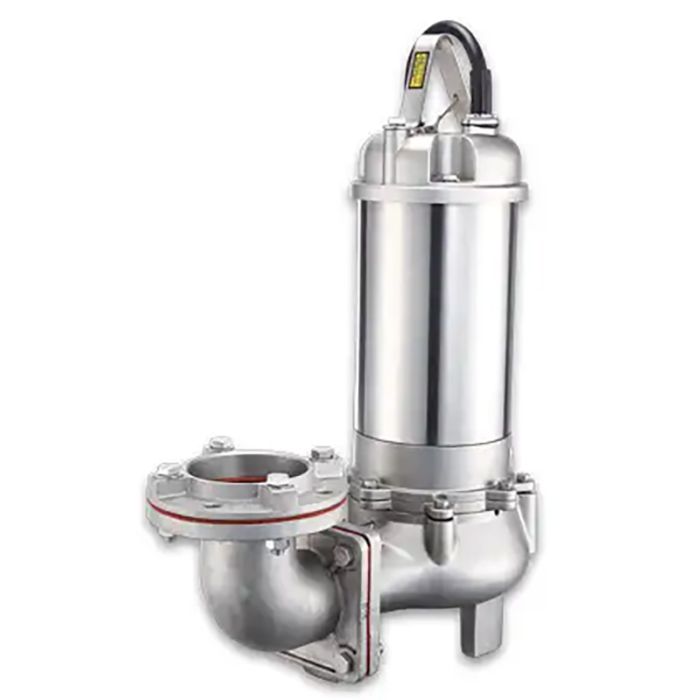

Barmesa Submersible Stainless Steel Vortex Sewage Pump - 2BSV-202DS, 2", 156 GPM, 2.0 HP, Single-Phase, 230 Volt
by Pump Sphere
£1,600.00
PRODUCT DETAILS
| Manufacturer | Barmesa |
|---|---|
| SKU | 2BSV-202DS |
| Model Number | 72090066 |
| Alternate Model Number | 72090066 |
| Special Features | Single-Phase |
| For Potable Water Use | No |
PRODUCT DETAILS
| Manufacturer | Barmesa |
|---|---|
| SKU | 2BSV-202DS |
| Model Number | 72090066 |
| Alternate Model Number | 72090066 |
| Special Features | Single-Phase |
| For Potable Water Use | No |
ENGINE/MOTOR DETAILS
| Engine/Motor Brand | Barmesa Pumps |
|---|---|
| Fuel Type | Electric |
| Starting System | NA |
| Horsepower | 2.0 HP |
| Phase | Single-Phase |
| Pump Voltage | 230 Volt (Single-Phase) |
| Frequency | 60 Hz |
| Rated Current | 10.1 Amps |
| Cable Length | 16 Feet |
| Cable Material | Neoprene |
| Pump RPM | 3450 |
| Motor Casing | Stainless Steel |
| Oil Chamber Material | Cast Iron |
PUMP DETAILS
| Pump Type | Sewage Pump |
|---|---|
| Pump Style | Electric Submersible Pump |
| Outlet Diameter | 2" |
| Discharge Direction | Vertical |
| Max Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates) | 156.0 |
| Max Total Head (Static) | 59 Feet |
| Maximum Pressure (PSI) | 26 |
| Solids Handling | Yes |
| Max Solids Handling (Inches) | 2" |
| Self Priming Pump | Yes, Submergence |
| Housing Material | Stainless Steel |
| Impeller Type | Semi-Open, Vortex |
| Impeller Material | Stainless Steel |
| # Of Impellers (Vanes) | 8 Vanes |
| Volute Material | Stainless Steel |
| Seal Material (Mechanical Or Other) | Oil-Filled, Carbon-Ceramic, Silicon-Carbide |
| Seal Plate Material | Stainless Steel |
| Shaft Bearings | Ball, Single Row, Oil-Lubricated |
| Shaft Material | Stainless Steel |
| Temperature Range | To 104 F |
| O-Ring Material | VITON |
| Pump Hardware Material | Stainless Steel |
| Port Type(s) | NPT |
| Fluid Porting | Vertical |
| Pump Operation | Manual |
| Submergence Minimum | 6" Above Pump Height (Continuously, To Avoid Vortex) |
| Submergence Maximum | 60’ Depth From Surface Of Water (Or As Stated By Manufacturer) |
