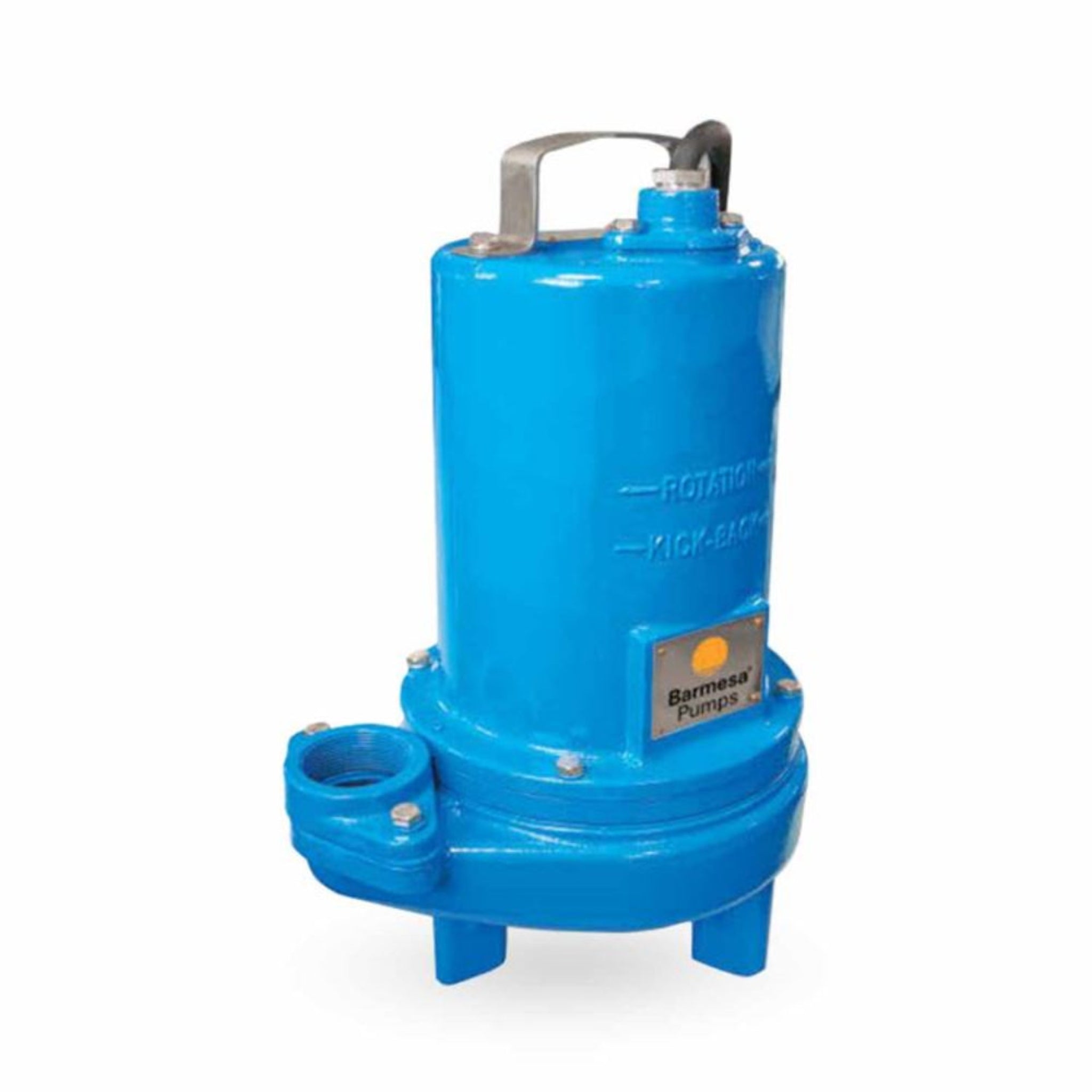

Barmesa Submersible Effluent Pump - 2BEH512SS, 2", 68 GPM, 0.5 HP, Cast Iron, Single-Phase
by Pump Sphere
£1,400.00
PRODUCT DETAILS
| Manufacturer | Barmesa |
|---|---|
| SKU | 2BEH512SS |
| Model Number | 62170651 |
| Alternate Model Number | 62170651 |
| Special Features | Single-Phase |
| For Potable Water Use | No |
PRODUCT DETAILS
| Manufacturer | Barmesa |
|---|---|
| SKU | 2BEH512SS |
| Model Number | 62170651 |
| Alternate Model Number | 62170651 |
| Special Features | Single-Phase |
| For Potable Water Use | No |
ENGINE/MOTOR DETAILS
| Engine/Motor Brand | Barmesa Pumps |
|---|---|
| Fuel Type | Electric |
| Engine/Motor Type | PSC, Oil Filled, NEMA L |
| Starting System | NA. |
| Horsepower | 0.5 HP |
| Phase | Single-Phase |
| Pump Voltage | 115 Volt (Single-Phase) |
| Frequency | 60 Hz |
| Start Current | 23.0 Amps |
| Rated Current | 11.0 Amps |
| NEMA Code | F |
| Cable Length | 15 Feet |
| Cable Material | Neoprene |
| Pump RPM | 3450 |
| Thermal Overload Protect | Yes |
| Motor Casing | Cast Iron |
| Cord Size (Gauge) | 14/3 |
PUMP DETAILS
| Pump Type | Semi-Trash Pump |
|---|---|
| Pump Style | Electric Submersible Pump |
| Outlet Diameter | 2" |
| Max Gallon Per Min (GPM) (See Pump Curve For Your Duty Point Estimates) | 68.0 |
| Max Total Head (Static) | 52 Feet |
| Maximum Pressure (PSI) | 23 |
| Solids Handling | Yes |
| Max Solids Handling (Inches) | 0.75" |
| Self Priming Pump | Yes, Submergence |
| Housing Material | Cast Iron |
| Impeller Diameter | 4.0" |
| Impeller Type | Open |
| Impeller Material | Bronze |
| # Of Impellers (Vanes) | 3 Vanes |
| Volute Material | Cast Iron |
| Seal Material (Mechanical Or Other) | Oil-Filled, Single, Silicon Carbide, Buna-N, With Stainless Steel Hardware |
| Seal Plate Material | Cast Iron |
| Shaft Bearings | Ball, Oil-Lubricated, For Radial And Axial Loads, Upper And Lower |
| Shaft Material | Stainless Steel |
| Temperature Range | To 104 F |
| O-Ring Material | Buna-N |
| Pump Hardware Material | Stainless Steel |
| Port Type(s) | Discharge: Female (NPT), NPT |
| Fluid Porting | Vertical |
| Pump Operation | Manual |
| Submergence Minimum | 6" Above Pump Height (Continuously, To Avoid Vortex) |
| Submergence Maximum | 60’ Depth From Surface Of Water (Or As Stated By Manufacturer) |
