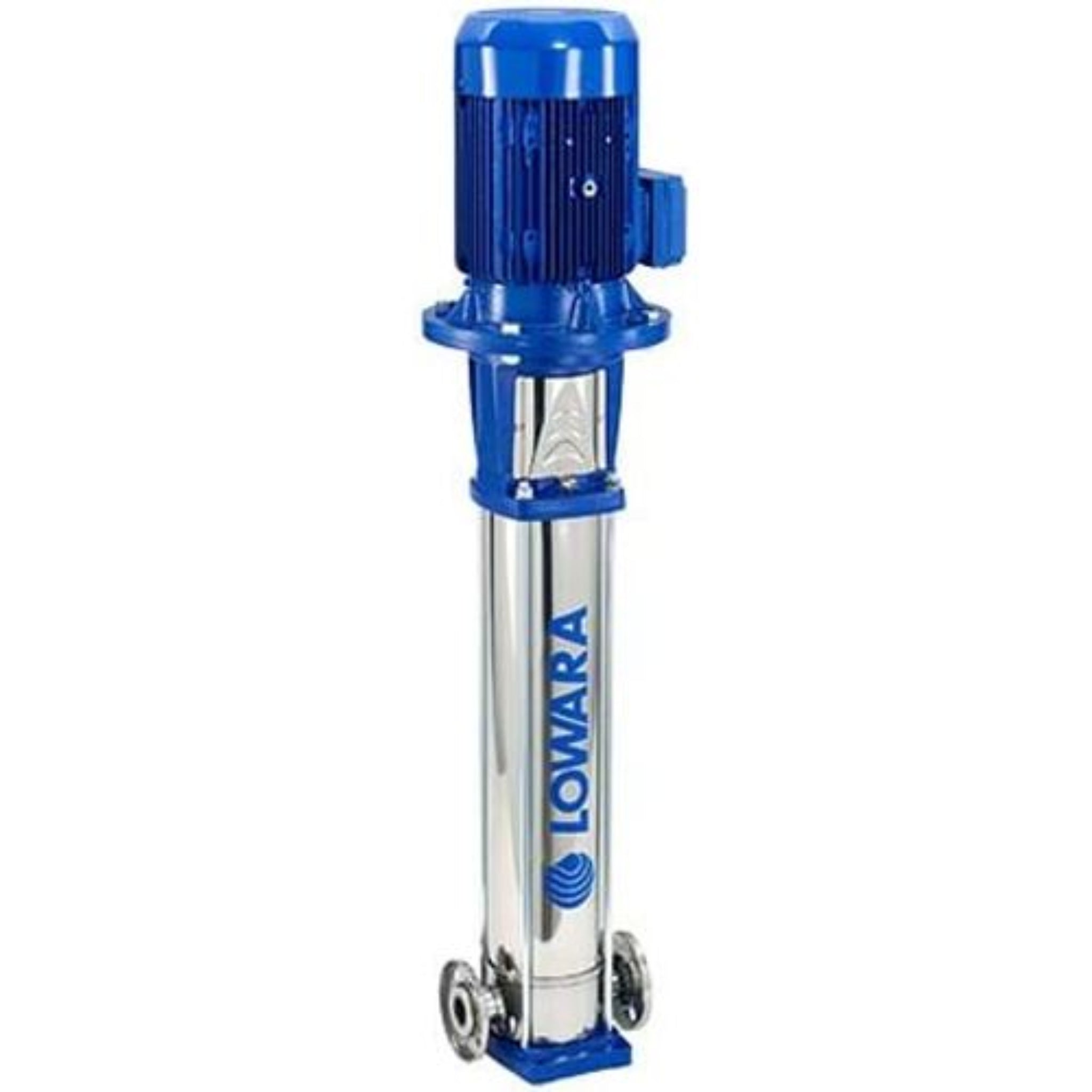

Lowara e‑SV 5SV12F022T/D Vertical Multistage Booster Pump
by Pump Sphere
£1,750.00
|
Feature
|
Description |
| Model | Lowara e‑SV 5SV12F022T/D |
| Flow Rate | 2.4 – 8.5 m³/h (≈ 40 – 143 l/min) |
| Head Range | Maximum ~91 m |
| Power | 2.2 kW, 3-phase (230/400 V, 50 Hz) |
| Material | Stainless steel liquid end, AISI 304 (flanges included) |
| Applications | Water treatment, pressure boosting, boiler feed, HVAC, food & beverage, irrigation |
| Pump Type | Vertical multistage centrifugal pump |
| Seal Type | Standard mechanical seal; replaceable without motor removal |
| Max Operating Pressure | 25 bar (PN25) |
| Liquid Temp Range | -30 °C to +120 °C |
| Certifications | WRAS-approved, IP55 motor protection, IE3 efficiency for ≥1.5 kW |
| Connection Options | DN32, Rp1¼ threaded and AISI 304 round flanges |
| Control System | No integrated control; compatible with VFDs like Hydrovar® |
