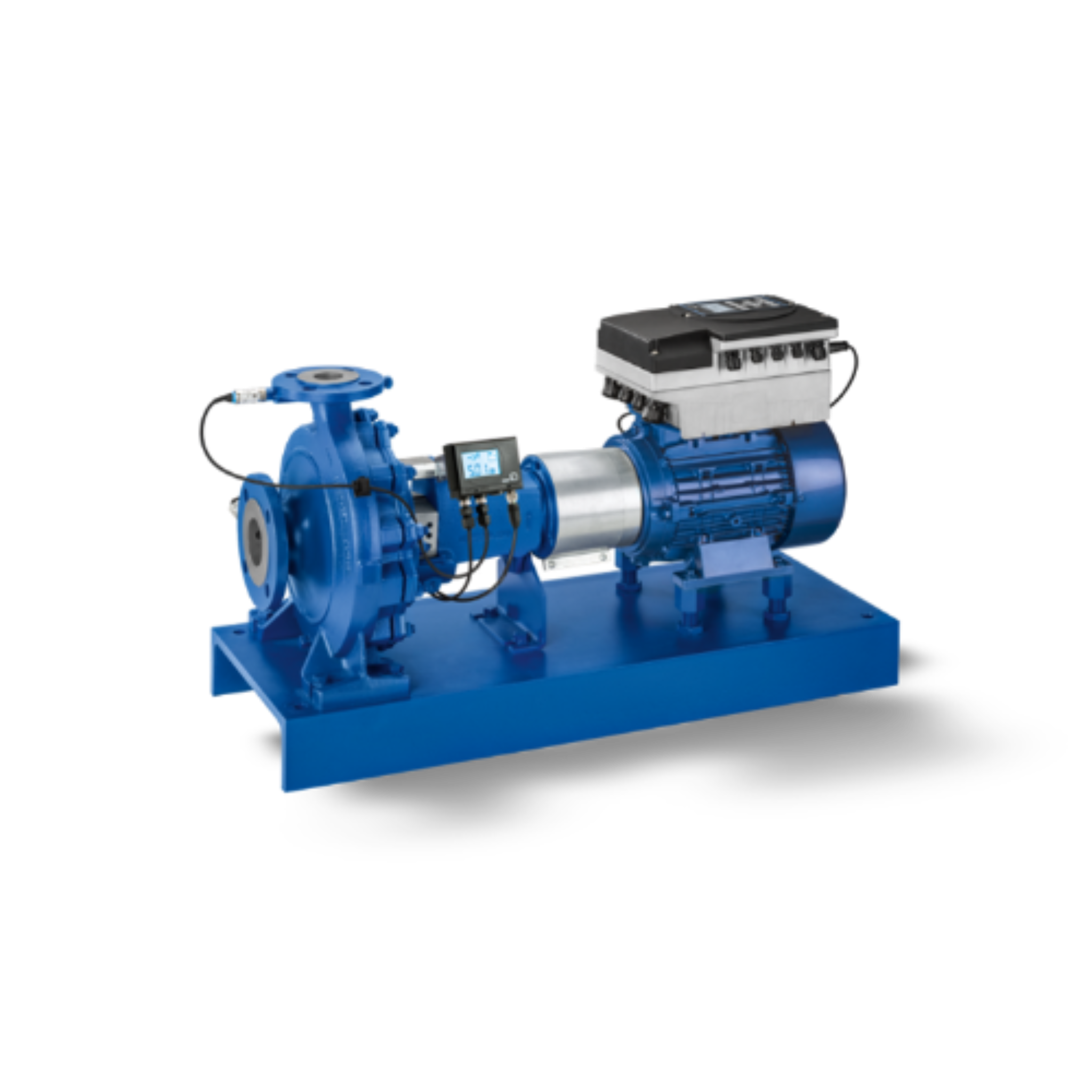

KSB Etanorm 100-250 End Suction Booster Pump
by Pump Sphere
£2,800.00
| Feature | Description |
| Model | KSB Etanorm 100-250 End Suction Booster Pump |
| Flow Rate | Up to approx. 700 m³/h (depending on impeller size and motor speed) |
| Head Range | Up to approx. 97 m |
| Power Range | Typically 7.5 kW to 37 kW (varies by duty point and impeller trim) |
| Material | Cast iron (standard), with options for bronze or stainless steel |
| Applications | Water supply, heating and cooling systems, irrigation, industrial circulation |
| Pump Type | Horizontal single-stage volute casing pump (DIN EN 733 compliant) |
| Seal Type | Gland packing or mechanical seal (single or double options) |
| Max Operating Pressure | Up to 16 bar (PN16 flanges standard) |
| Liquid Temp Range | -10°C to +140°C (standard version; high-temp options available) |
| Certifications | ISO 5199, EN 733 compliant; WRAS option available for potable water |
| Connection Options | DIN or ANSI flanges (PN16); suction and discharge flanged connections |
| Control System | Typically paired with VFD for energy savings; not integrated by default |
| Installation Type | Horizontal baseplate-mounted with flexible coupling and motor |
